DSB MOBILE FIELD SHELTER/STABLE FEATURES

The Mobile Field Shelter/Stable range is the most talked about range to date due to the innovative design to get around planning and the most versatile building in the DSB line up.


The mobile buildings have been designed from the ground up with the clever way in which they can slide along the paddock or field with ease. The buildings have a 100mm x 100mm box steel sledge bolted together on all four corners to optimise the rigidity of the building.



The mobile ranges are made to withstand all weathers and like the field shelter range we also offer the 3ft roof canopy option.





When it comes to timber buildings then DSB is the right choice for you…

2515
2522

MAIN FEATURES

Strong Durable Framing

All of the DSB timber mobile shelters are constructed using extra strong 75mm x 50mm (3″ x 3″) stress graded timber framing in all of our shelter process providing strength and durability.

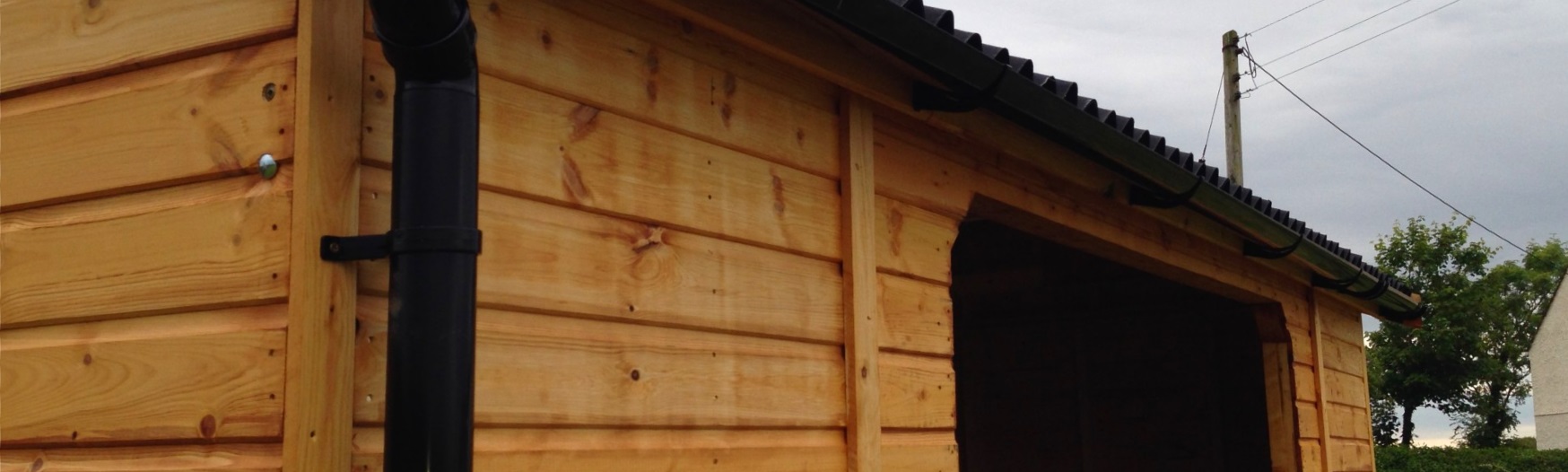

Shiplap Weatherboard Cladding

Our quality planed 16mm finished Shiplap cladding is fitted by galvanised ring nails as standard to the frame, we have one other option to upgrade to a more rustic T&G planed feather board – Ask for more information.



Wider Openings

The DSB field shelter openings are constructed wider to allow your horse or animals to pass one another without contact, you have the choice of width’s – 8ft or the wider 10ft depending on the size of shelter.

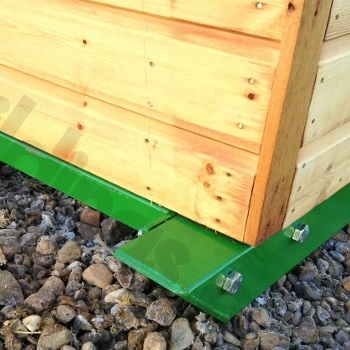

Metal Sledge Design

Choose from either green painted or galvanised metal skids for the main base of the feild shelter. Our unique metal skids measure 100mm x 100mm (4″ x 4″), both skids are the toughest for the movement across the roughest terrain. The corners are bolted and have the towing points welded at both – heavy duty chain is supplied with the kit.



Kicking Boards

Each mobile field shelter comes with strong 18mm OSB3 kick boards to 1.2m (4′) high, lining the inside of all external walls increases the rigidity of the build.



OPTIONAL EXTRAS

Wide Access Double Doors

You can upgrade your standard DSB mobile field shelter to take our extra wide 2133mm (7′) double doors if you choose to use the building as an Haybarn.



Roof Overhang

All of the Shelters can have the front roof extended to make an attractive 3′ canopy, ideal for stable yards and keeping out the elements.



Wooden Gates

Why not go for the ultimate field shelter and add one of our solid timber or metal gates securely hinged to the left hand side .


2517
2518
2519
2181

Can’t find what you are looking for? We manufacture to order.

Speak to one of our dedicated Production Manager’s today for advice on any type of bespoke requirements.
