DSB TIMBER STABLE FEATURES

The DSB Stable range has been at the forefront of our designs since the early 1970’s and has become renowned for the quality, strength and durability on offer. Whether you are building a single stable or an entire yard, DSB range of equine buildings offer the full package to meet all of your needs, we currently offer two types of stables which are designed to offer changeability to suite any budget.

The “standard” loosebox is 12 x 12’ and is suitable for most horses up to 16.3HH, but we also offer a 10 x 12’ for ponies and 14 x 12’ for hunters. Of course we can tailor make to any size suitable for your needs – Our corner boxes offer a generous 17′ x 12’ size – why settle for anything less?

All of the DSB equestrian buildings we feature use the ONDULINE roofing system on all of our stables and believe this to be both economic and technically superior to traditional felt-All of our roofs are fully boarded with a 12mm osb3 sheet… The best roof on the market!


When it comes to timber buildings then DSB is the right choice for you…

2344
2345

MAIN FEATURES

Externally Treated Timber

All of our external timber cladding used in the build is externally treated for longevity. Our solvent based preservative is applied to the wood after the construction of the panel to help avoid fungal decay, wood rot and most importantly insect attacks.



Strong Durable Framing

All of the DSB timber garages & workshops are constructed using extra strong 75mm x 50mm (3″ x 2″) stress graded timber framing in all of our garage/workshop building process providing strength and durability. Our roof trusses are the common ‘A’ shape made using a series of 75mm x 50mm (3″ x 2″) to support the roof  keeping the ridge line straight throughout the garage/workshops life span.



Shiplap Weatherboard Cladding

Our quality planed 16mm finished Shiplap cladding is fitted by galvanised ring nails as standard to the frame, we have one other option to upgrade to a more rustic T&G planed feather board – Ask for more information.

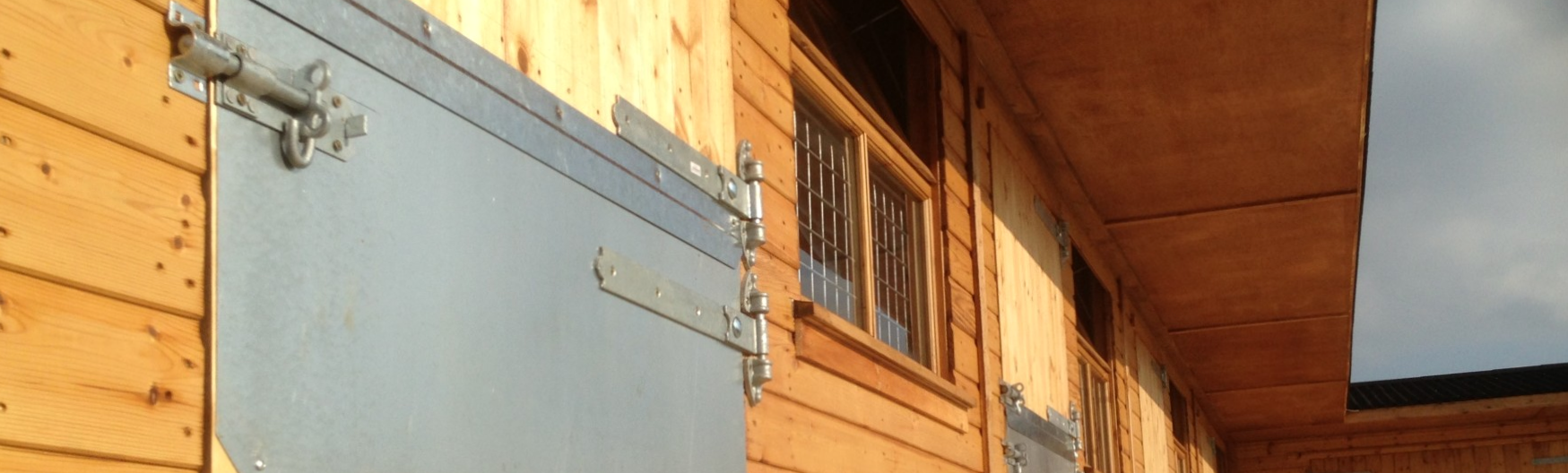

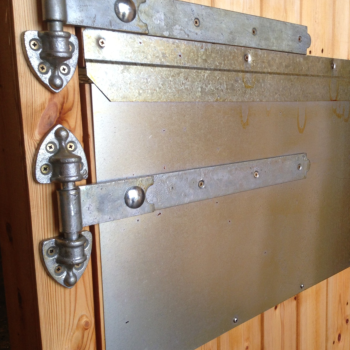

Wider Stronger Doors

The DSB timber stable doors measure 2133mm (7′) high x 1117mm wide (3’8″) for an easier access point for your horse. The doors are fully framed with a 16mm TGV faced board and lined on the rear with 9mm plywood, bottom door will have anti chew protection. All doors come with strong galvanised fittings and all kickover and padbolts.



Onduline Roof & Boarding

All of the DSB stables come with the durable black corrugated Onduline as standard laid on to the 12mm solid pre boarded roof panels illiminating sheet sagging. One main advantage, this gives the building ultimate strenght and rigidity.



OPTIONAL EXTRAS

Full Height Kick Boards

All of the stables, tack rooms and haybarns can now have the walls lined up to the eaves with 18mm OSB3 for extra rigidity and wall protection.



Supreme Windows

You can upgrade your standard DSB stable window to take our Supreme range of window, the window comes with a galvanised guard to the inside for full protection. Prices on POA.



Canopy Lined

For a more aesthetic style, you can also upgrade your standard roof canopy and have this lined with 9mm plywood. Ask for current prices.



Clear Roofing Sheet Options

Onduline clear roofing sheets can be added into to each stable unit for extral natural light.


2346
2347
2181
2182

Can’t find what you are looking for? We manufacture to order.

Speak to one of our dedicated Production Manager’s today for advice on any type of bespoke requirements.
